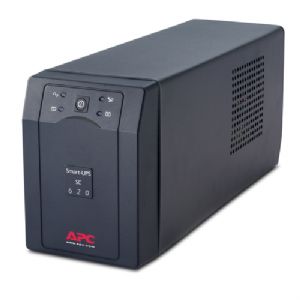

SC620I - APC Smart-UPS SC 620VA 230V 390W/DB9/RS232/2Yr Wty

Output
• Output power capacity: 390 Watts / 620 VA
• Max Configurable Power (Watts): 390 Watts / 620 VA
• Nominal Output Voltage: 230V
• Output Voltage Distortion: Less than 5% at full load
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Topology: Line Interactive
• Waveform type: Stepped approximation to a sinewave
• Output Connections:
• (1) IEC 320 C13 (selector_surgetitle)
• (3) IEC 320 C13 (Battery Backup)
• Transfer Time: 2ms typical

Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320-C14 inlet
• Input voltage range for main operations: 195 - 265 V

Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time: 5.5 hour(s)
• Replacement Battery: RBC4
• RBC Quantity: 1
• Battery Volt-Amp-Hour Capacity: 132
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph


Communications & Management
• Interface Port(s): DB-9 RS-232
• Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
• Emergency Power Off (EPO): N/A

Surge Protection and Filtering
• Surge energy rating: 320 Joules
• Data Line Protection: RJ-45 Modem/Fax/DSL/10-100 Base-T protection
• Filtering: Full time multi-pole noise filtering: 0.7% IEEE surge let-through: zero clamping response time: meets UL 1449

Physical
• Maximum Height: 168, 16.8 cm
• Maximum Width: 119, 11.9 cm
• Maximum Depth: 375, 37.5 cm
• Net Weight: 12.27 kg
• Shipping weight: 13.18 kg
• Shipping Height: 318, 31.8 cm
• Shipping Width: 262, 26.2 cm
• Shipping Depth: 508, 50.8 cm
• Color: Grey

Environmental
• Operating Environment: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0-3000 meters
