IVNC620ADX - IVSEC THERMAL TURRET IP CAMERA 5MP 3.2MM FIXED LENS 25FPS BI-SPECTRUM ADV DET
IVNC620ADX - IVSEC THERMAL TURRET IP CAMERA 5MP 3.2MM FIXED LENS 25FPS BI-SPECTRUM ADV DET
Couldn't load pickup availability
CCTV Storage Calculator https//www.seagate.com/au/en/video-storage-calculator/

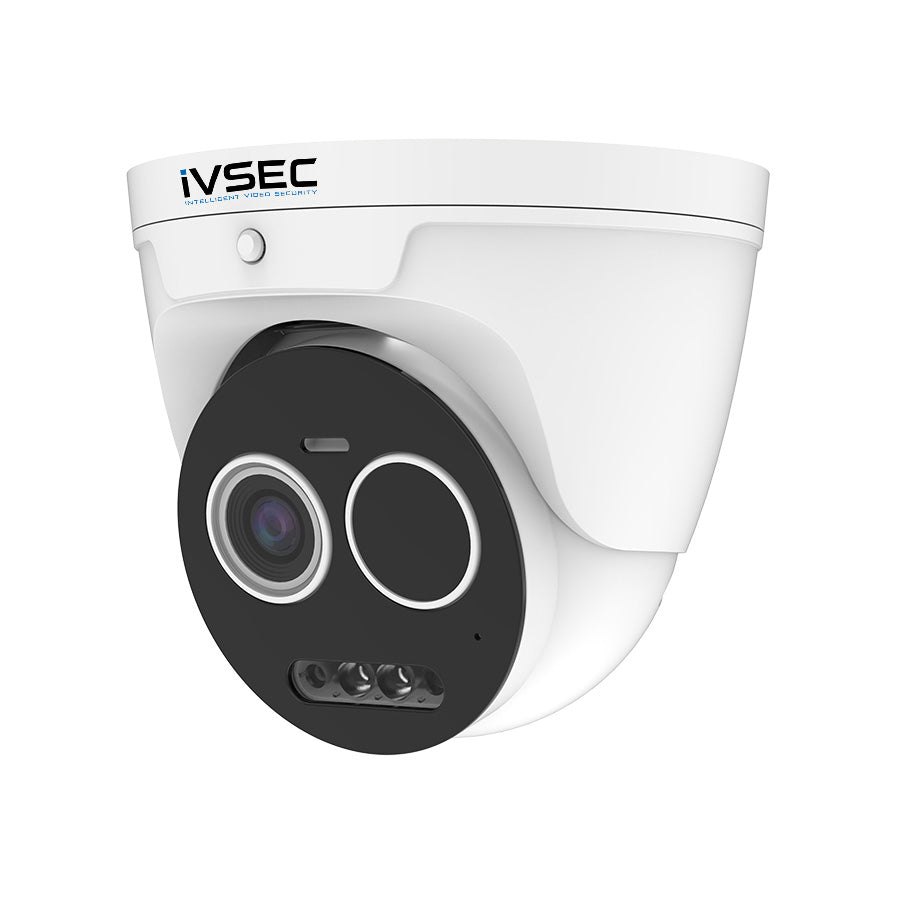

NC620ADX Security Camera
The NC620ADX is an advanced turret thermal IP camera designed to provide robust surveillance capabilities in various environments. With a unique bi-spectrum design it combines both color and thermal imaging technologies to deliver comprehensive monitoring solutions.
| Camera Type | Thermal |
| Image Sensor | 1/2.8″ Progressive CMOS |
| Maximum Video Resolution | 5MP 2592 x 1944 Colour 1MP 1280 x 720 Thermal |
| Frames Per Second FPS | 25 |
| Lens | 3.2mm |
| Lens Type | Fixed |
| Pixel Pitch for Thermal Camera | 12μm |
| Spectral Range for Thermal Camera | 8-14μm |
| Thermal Sensitivity for Thermal Camera | ≤40mk25°C F1.0 25Hz |
| Thermal Reflective Temperature °C | -20 – 150°C |
| Colour Pallets for Thermal Camera | Yes |
| Maximum Night IR Distance M | 30 |
| LED | Red & Blue White |
| Video Compression | H.265 H.265 H.264 H.264 MJPEG |
| ONVIF depends on firmware version | ONVIF Profile S/G/T HTTP API |
| Accessories | IV2422X IV2433X IV2444X IV2455X IV2457X IV2477X |
| Outdoor Use | Yes |
| IP Rating | IP67 |
| Vandal Resistant | Yes |
| Day/Night Mode | Auto |
| Image Enhancement | Flip mode Brightness Contrast Saturation Sharpness Hue Mirror Angle Flip Back Light White Balance Shutter Time Exposure Defog 3D Noise Reduction |
| Intelligent Video IVS | Face Detection Human & Vehicle Detection Perimeter Intrusion Detection Line Crossing Detection Cross Counting Heat Map Crowd Density Detection Ques Length Detection Licence Plate Detection Rare Sound Detection Sound Detection Video Tampering Intrusion Detection Enter Region Detection Exit Region Detection Fire Detection Temperature Measurement |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams encode format | 3 Streams Colour 2 Streams Thermal |
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code |
| Protocols | TCP/IP UDP HTTP HTTPS DHCP FTP RTP/RTSP DNS DDNS NTP PPPOE UPNP SMTP SMTP P2P QR code |
| Language | English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish |
| Cloud option camera only | Dropbox |
| Audio Streaming | No |
| Ethernet | Ethernet 10/100 Base-T |
| Power Over Ethernet | Yes |
| Power Supply | Power over Ethernet IEEE 802.3at DC12V |
| Power Consumption | < 14W |
| Connectors | RJ-45 DC Power Input Audio In Audio Out Alarm in or out 1 reset button SD card slot. |
| Oper |
