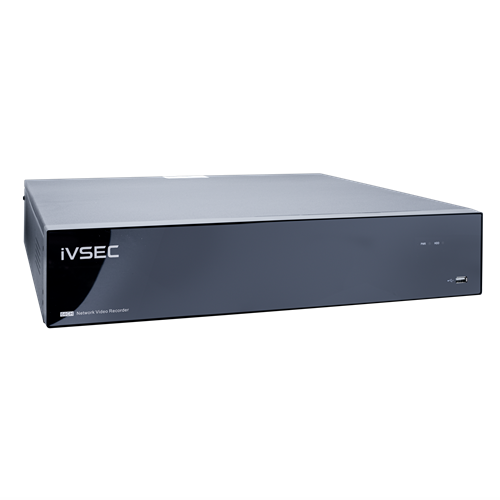

IVNR6256EXA - IVSEC NR6256EXA NVR 256 CHANN ELS 2 ETHERNET PORTS 16 BAYS H265 4 BY 4K HDMI ADV IVS
IVNR6256EXA - IVSEC NR6256EXA NVR 256 CHANN ELS 2 ETHERNET PORTS 16 BAYS H265 4 BY 4K HDMI ADV IVS
Couldn't load pickup availability
CCTV Storage Calculator https//www.seagate.com/au/en/video-storage-calculator/
NR6256EXA NVR
| Maximum Channels | 256 |
| Maximum Video Resolution Megapixels | 12MP |
| Examples of Channels at a resolution with FPS | 1024 Mbps |
| Video Compression | H.264 H.265 H.264 H.265 |
| Video Output Resolution | 4K HD-1080p HD-720p 1.3 MP D1 VGA |
| Image Display | 1 4 6 8 9 10 12 13 14 16 17 19 20 22 25 32 36 42 49 56 64 |
| Intelligent Video Dependant On Camera | Perimeter Intrusion Detection Face Recognition Human & Vehicle Detection Line Crossing Detection Stationary Object Detection Crossing Counting Heat Map Crowd Density Detection Queue Length Detection License Plate Detection Rare Sound Detection Video Tampering License Plate Recongnition |
| Search Method | Continuous Scheduling Event Triggered By IVS filtering. Snapshot Searching Tagging footage Time Lapse Slice Multiple Snapshot Thumbnail Search Per Hour General Indicated Timeline Seach. |
| Total Storage Potential TB | 256 |
| HDD Bays Size | Bays x 16 up to 16TB per HDD |
| Raid Options | RAID0 RAID1 RAID5 RAID6 RAID10 |
| Software | Device Search Config Tool Surveillance Client CMS VMS Mobile app |
| Protocols | TCP IP UDP HTTP HTTPS DHCP FTP RTP RTSP DNS DDNS NTP PPPOE UPNP SMTP SMTP P2P QR code |
| Language | English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish |
| Audio Streaming | Audio out |
| Non Power Over Ethernet Ports | 2 |
| Power Over Ethernet Ports | 0 |
| Power Supply | Internal |
| Power Consumption | 8W Without HDD |
| Connectors | HDD 3.5″ SATA HDD Slot x 16 USB3 Female x 2 USB2 Female x 1 Gigabit Ethernet RJ-45 Port x 1 4 x HDMI e-Sata x 1 Alarm ports 16 in and 4 out RS485 Audio out Power input x 1 On off switch |
| Operating Environment | -10°C 50°C 14°F 122°F Humidity Less than 90RH |
| In The Box | Printed quick installation guide Mouse HDD screws Power supply. |
| Product Dimensions H x W x L mm | 189 x 460 x 440 |
| Weight Net/Gross kg | 14.00 / 13.00 |
| Warranty | 2 Years Parts |
