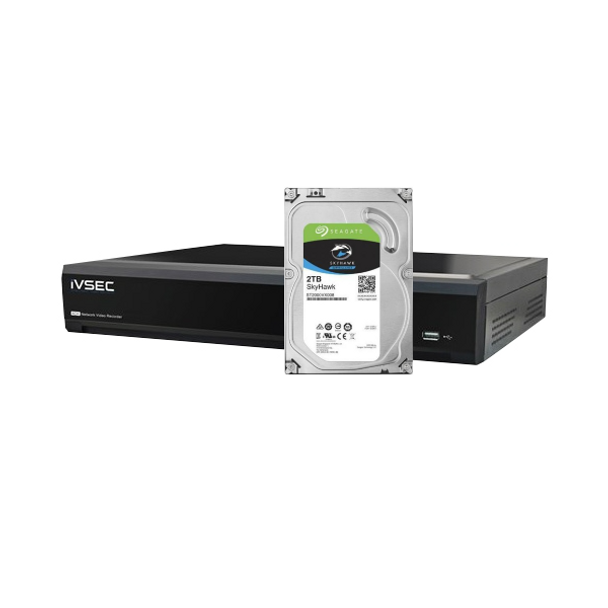

IVSEC NR004XA NVR 4 CHANNELS 8MP 4 x POE PORTS 1 BAY H265 4K HDMI 2TB INSTALLED
IVSEC NR004XA NVR 4 CHANNELS 8MP 4 x POE PORTS 1 BAY H265 4K HDMI 2TB INSTALLED
Regular price
$491.69
Regular price
$495.00
Sale price
$491.69
Unit price
/
per
Tax included.
Couldn't load pickup availability
Share
- Description
Description
CCTV Storage Calculator https//www.seagate.com/au/en/video-storage-calculator/
NR004XA NVR-2TB
| Maximum Channels | 4 |
| Maximum Video Resolution Megapixels | 8MP |
| Examples of Channels at a resolution with FPS | 50 Mbps |
| Video Compression | H.264 H.264 H.265 H.265 MJPEG |
| Video Output Resolution | 4K HD-1080p HD-720p 1.3 MP D1 VGA |
| Image Display | 1 4 |
| Intelligent Video Dependant On Camera | Motion Detection IVS -Perimeter Intrusion Detection Face Recognition Human & Vehicle Detection Line Crossing Detection Stationary Object Detection Crossing Counting Heat Map Crowd Density Detection Queue Length Detection License Plate Detection Rare Sound Detection Video Tampering |
| Search Method | Continuous Scheduling Event Triggered By IVS filtering. Snapshot Searching Tagging footage Time Lapse Slice Multiple Snapshot Thumbnail Search Per Hour General Indicated Timeline Seach. |
| Total Storage Potential TB | 10 |
| HDD Bays Size | Bays x 1 Up to 10TB per HDD |
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app |
| Protocols | TCP/IP UDP HTTP HTTPS DHCP FTP RTP/RTSP DNS DDNS NTP PPPOE UPNP SMTP SMTP P2P QR code |
| Language | English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish Etc. |
| Audio Streaming | Out |
| Power Over Ethernet Switch Ports | 4 up to 802.3at30w |
| Power Over Ethernet | Yes |
| Power Supply | DC48V/1.2A |
| Power Consumption | 5W Without HDD |
| Connectors | HDD 3.5″ SATA HDD Slot x 1 USB2 Female x 2 Ethernet RJ-45 Port x 1 and 4 x PoE ports HDMI Audio out Power Jack input On off switch |
| Operating Environment | 10ºC to 50ºC 14ºF-122ºF HumidityLess than 90 RH |
| In The Box | Printed quick installation guide Mouse Remote control HDD screws Power supply. |
| Warranty | 24 months parts |
| Dimensions | 300 x 227 x 53 mm |
| Weight kg | 1 kg |
Enquire now for specialist advice https//ivsecurity.com.au/contact/
