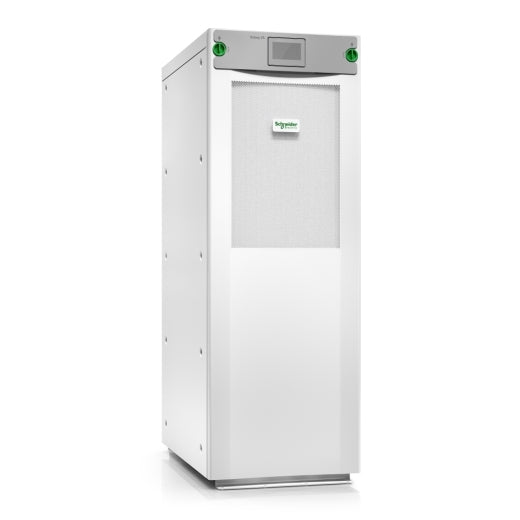

GVSUPS50KRHS - APC Galaxy VS UPS 50kW 400V with N+1 power module for external batteries, Start-up 5x8

APC Galaxy VS UPS 50kW 400V with N+1 power module for external batteries, Start-up 5x8

Highly efficient, easy-to-deploy 50 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
Main Input Voltage 400 V 3 phases
Other Input Voltage 380 V, 415 V
Main Output Voltage 400 V 3 phases
Rated power in W 50 kW
Rated power in VA 50 kVA
Battery type External battery system
Li-Ion (Lithium-Ion) VRLA
Provided equipment-Dust filter, EcoStruxure IT ready (UPS), Installation guide, Integrated network management, Power modules ship installed, Start-up service
Range of product Galaxy VS
Range compatibility Galaxy VS
Network frequency 40...70 Hz
Input voltage limits 340...460 V 400 V
Maximum input current 90 A
Max short time withstand current 65 kA
Input harmonic distortion Less than 3 % for full load
Load power factor From 0.7 leading to 0.7 lagging without any derating
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3300 ft
Ambient air temperature for storage -25…55 °C
Storage Relative Humidity 10…80 % non-condensing
Acoustic level 68 dBA
Heat dissipation 5804 Btu/h
IP degree of protection IP21

Compatible Accessories--AP9644
Compatible Batteries- LIBSESMG13IEC, LIBSESMG16IEC
Compatible Spare parts- AP9644, 29452, LV429338T
