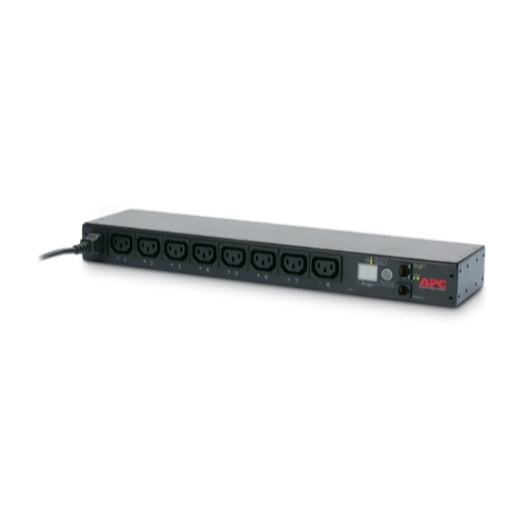

AP7920B - APC Netshelter Switched Rack PDU, 1U, 230V/10A C14 Cord Input, 8x IEC C13 Outlets

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Colour Black
PDU type Switched
Cord length 1.98 m
Number of cables 1
Provided equipment - Installation guide, Rack mounting brackets, User manual
Input Voltage 200 V 208 V 230 V
Output Voltage 208 V 230 V
Permissible voltage 200…240 V
Input current limits 15 A
Load capacity 2300 VA
Rated current 10 A - 230 V 12 A - 208 V
Network frequency 50/60 Hz
Total number of outlets 8 IEC 60320 C13
Product certifications- cUL listed, CE, CSA, GOST, IRAM, UL listed, VDE
Standards EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, UL 60950
Ambient air temperature for operation 0…45 °C
Relative humidity 0…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m

Mounting mode- Rack mounted
