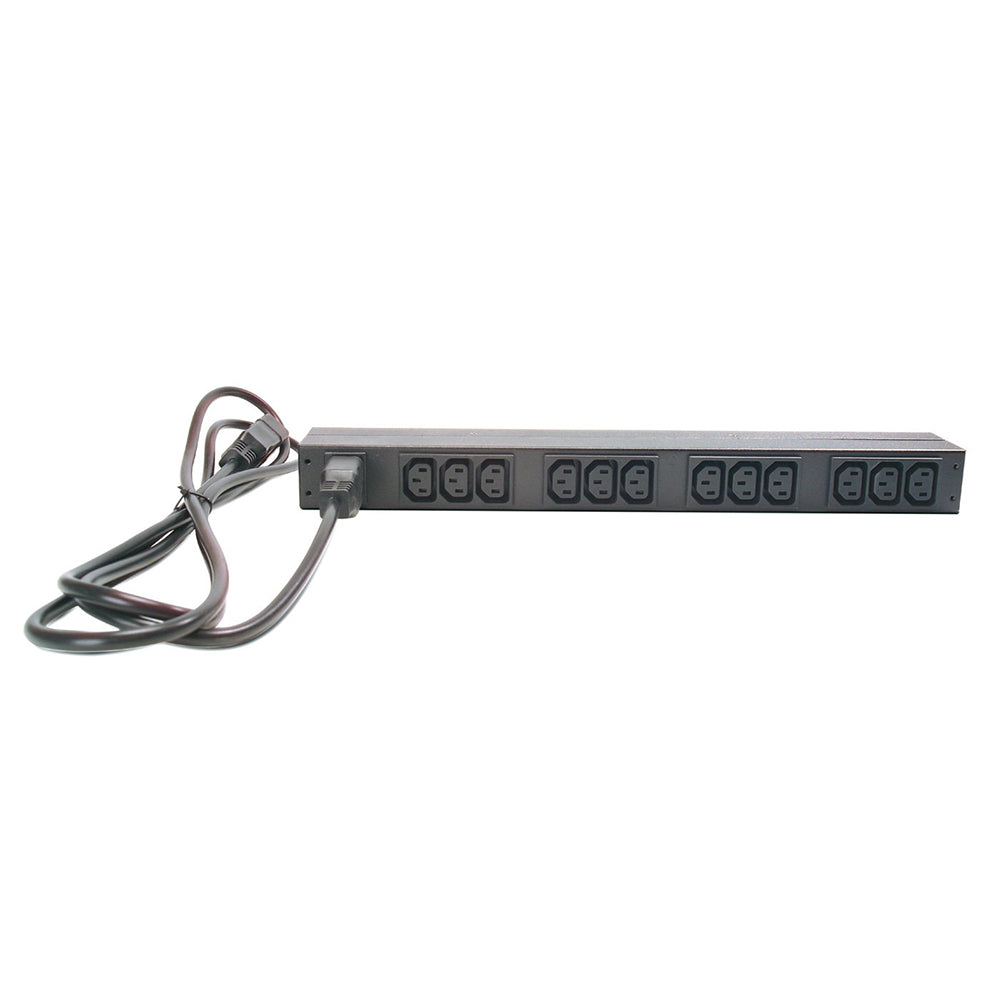

AP9565 - APC NetShelter Basic Rack PDU, 1U, 230V/16A Input, 12x IEC C13 Outlets
AP9565 - APC NetShelter Basic Rack PDU, 1U, 230V/16A Input, 12x IEC C13 Outlets
Couldn't load pickup availability
APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Colour Black
PDU type Basic
Cord length 2.50 m
Number of cables 1
Provided equipment- Installation guide, Rack mounting brackets
Input Voltage 200 V, 208 V, 230 V
Input Plug Type IEC 60320 C20
Rack units 1U
Mounting position Horizontal
Input current limits 16 A
Load capacity 3680 VA
Network frequency 50/60 Hz
Total number of outlets 12 IEC 60320 C13
Product certifications- CUL listed, CE, Queensland Australia, UL listed, VDE
Standards UL 60950
Ambient air temperature for operation 0…45 °C
Relative humidity 0…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
Compatible PDU- AP9569, EPDU1016B, EPDU1016M, EPDU1016S
