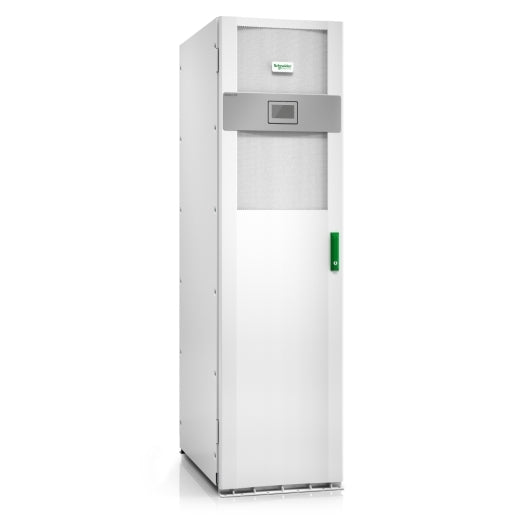

GVSUPS40KR0B5HS - APC Galaxy VS UPS 40kW 400V with N+1 power module, for 5 smart modular 9Ah battery strings, Start-up 5x8

APC Galaxy VS UPS 40kW 400V with N+1 power module, for 5 smart modular 9Ah battery strings, Start-up 5x8

Highly efficient, easy-to-deploy 40 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.

Main Input Voltage400 V 3 phases
Other Input Voltage- 380 V, 415 V
Main Output Voltage 400 V 3 phases
Other Output Voltage- 380 V, 415 V
Rated power in W 40 kW
Rated power in VA 40 kVA
Battery type- Internal modular battery VRLA
Provided equipment- Dust filter, Installation manual, Integrated network management, Start-up service, EcoStruxure Ready
Network frequency 40...70 Hz
Input voltage limits 340...460 V 400 V
Maximum input current 72 A
Max short time withstand current 65 kA
Input harmonic distortion- Less than 6 % for full load
Load power factor-From 0.7 leading to 0.7 lagging without any derating
Input Power Factor at Full Load 0.99
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3300 ft
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 10…80 % non-condensing
Storage altitude 0.0000000000…3048.0000000000 m
Acoustic level 54 dBA
Heat dissipation 4412 Btu/h
IP degree of protection- IP20

Compatible Accessories-AP9644
Compatible Batteries- GVSBTH4, GVSBTH4LL, GVSBTHU, GVSBTHULL, GVSMODBC6, GVSMODBC9, LIBSESMG16IEC
